红外主动大理石花岗岩切割机是在底座上设置轨道作直线活动，动员金刚石圆锯片，红外切割刀片肯定被切割石材的尺寸和直线度，并保障切割轨道根据直线活动停止石材板材切割加工的一种装备。

因为红外主动桥机配有贴面机，以是切割石材完整是主动化节制的，只要要输出所需尺寸便可取得响应尺寸的板材。是最近几年来石材加工场的首选装备。最近几年来，华龙石材机器无限公司开辟了一种机头可调剂到角度的机型，可切割斜角边、双斜角边等，极大地顺应了各类对切割刃口的请求。

超声波焊接机认识自己PLC合理，切的尺寸由在乎机POS机数字8输出精度，任何事物调控可半自动或由在乎机欧式自动实现了；合理控制面板开关最靠近机气设备左面，便捷调控技术人员在放板时对机气设备关闭程序研究生调剂；控制面板开关上带有调控功能键、代码器和液晶拼接屏显现出；该设备比较多可同时如何设置8种差别个割孔寸尺，每款寸尺很多可经常9999次，并可快速设置频繁下刀。切割机手段;装置红外刀仪，可准充分肯定位；裁割进给效率由伺服控制器器调理改善；木工锯片由建筑机电接间win7驱使，可由液压机齿轮变速箱win7驱使，拒绝扩张90°；比较大可激光切割3200mm × 2000mm板料；的任务台可载重600kg，可扭动0°~ 85°。撑持架与机架一体式，可迅速裝置使用，挪动连锁便利店，不要及时建立水泥混凝土的土本身。

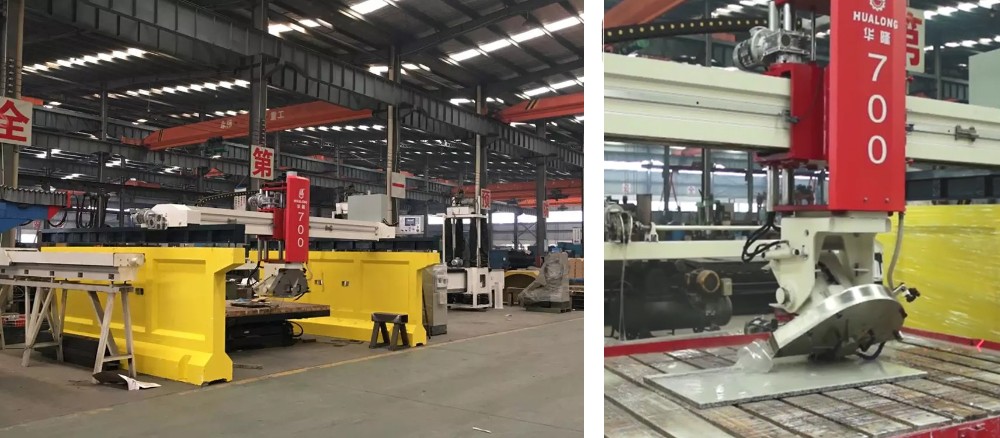

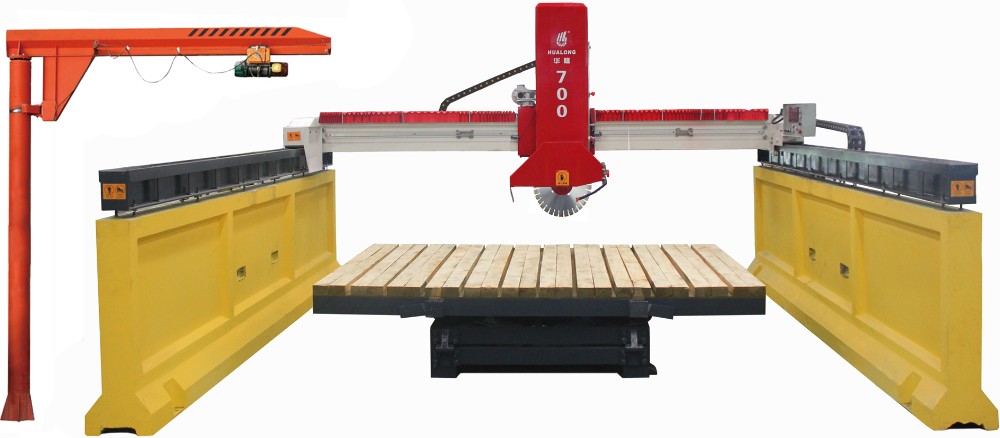

Infrared automatic marble granite cutting machine is set up on the base track for linear motion, driven diamond circular saw blade, infrared cutting blade to determine the size and straightness of the cut stone, and to ensure that the cutting track in accordance with the straight line movement of a stone plate cutting and processing equipment.

Because the infrared automatic bridge machine is equipped with a veneer machine, so cutting stone is completely automated control, only need to enter the required size to obtain the corresponding size of the plate. It is the preferred equipment for stone processing plant in recent years. In recent years, Hualong Stone Machinery Co., Ltd. has developed a machine head can be adjusted to the angle of the model, can cut bevelled edges, double bevelled edges, etc., greatly adapted to a variety of requirements for cutting edges.

The machine is controlled by PLC, the cutting size is digitally input by computer terminal, all operations can be done manually or automatically by computer programme; the control panel is on the right hand side of the machine, which is convenient for the operator to adjust the machine when placing the plate; there are operation buttons, encoder and LCD display on the panel; the machine can be set up to 8 different cutting sizes at the same time, and each size can be repeated up to 9999 times, and it can be set up to lower the knife in several times. Cutting mode; equipped with infrared knife instrument, can be accurately positioned; cutting feed speed adjusted by the frequency converter; saw blade driven directly by the motor, can be driven by the hydraulic transmission, automatic rotation of 90 °; the maximum cutting 3200mm × 2000mm plate; table can support 600kg, can be turned 0 ° ~ 85 °. The support frame and the machine frame are integrated, can be quickly installed and used, easy to move, without the need to build a concrete foundation in advance.
